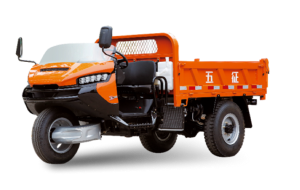

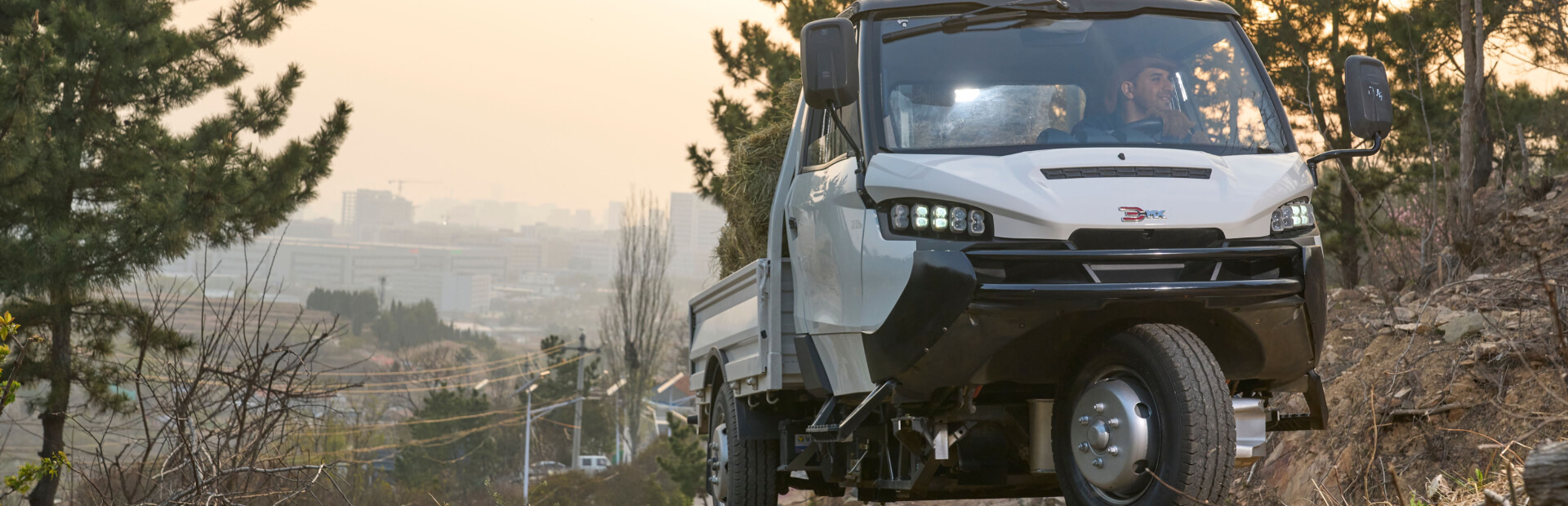

3MX ( ICE )

A revolutionary three-wheeled vehicle bringing users more space, more comfort and a flexible solution to satisfy numerous demands.

Vehicle selection

Do you need any help?

Vehicle selection

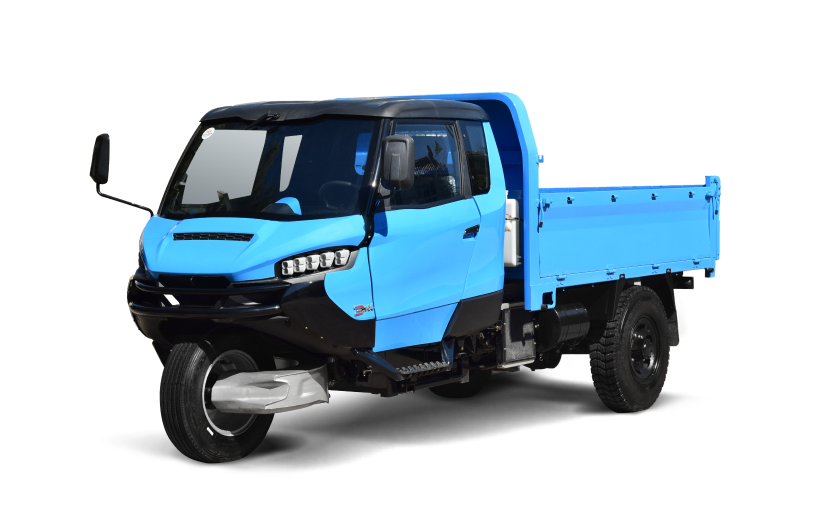

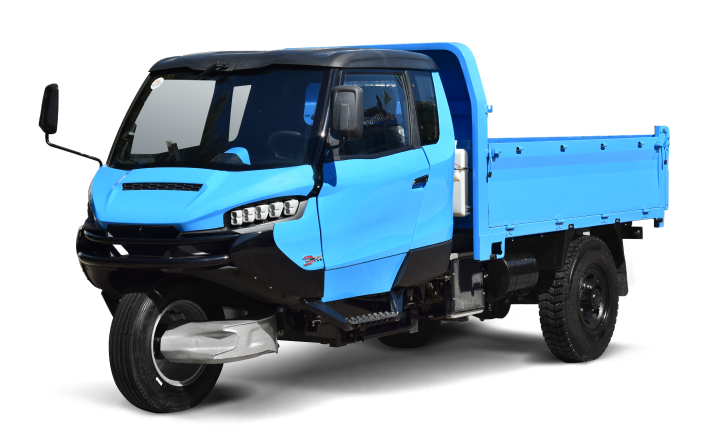

3MX multi-cylinder fully enclosed

An industry-leading product integrating aesthetics, comfort, functionality and safety

- Appearance: Perfect combination of power and aesthetics.
- Comfort: All-round enjoyable driving experience.
- Maneuverability: Precise driving control, conveying confidence.
- Safety: Unique structure that doubles safety.
- High-intensity operations: Carry more with less fuel, excellent cost-effectiveness and durability.

Advantages

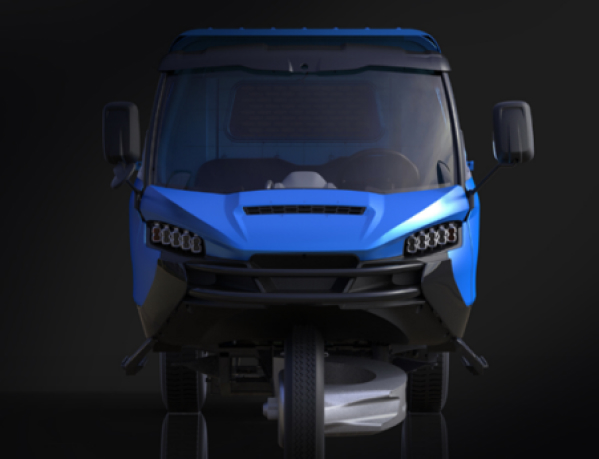

Stylish appearance

3MX embodies the perfect integration of power and aesthetics, featuring a streamlined body and a full LED Galaxy Light Art System. Every detail has been carefully crafted to ensure that you will love it.
The engineered polymer body, the first of its kind in the industry, will never rust.

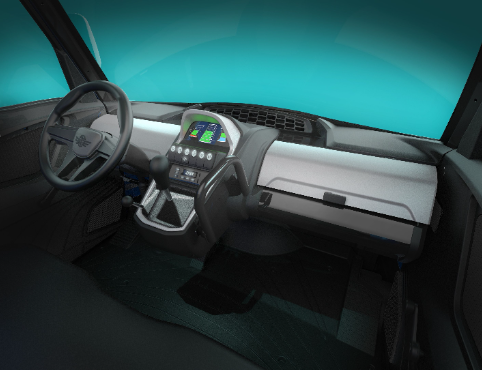

Rational layout

Professional HMI control performance adjustment, luxury central instruments with intuitive control, optimized variable speed control position, easier control, and industry pioneering one-key hydraulic lifting system for simple and fast control.

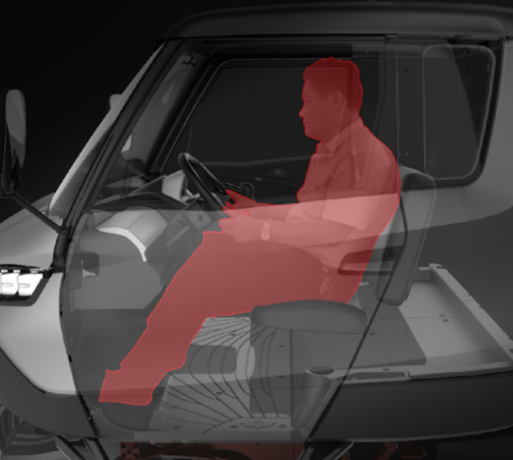

Comfortable riding

The 3MX, with its advanced ergonomic design, optimizes the layout and increases legroom by 60%, while the front suspension design delivers a significant improvement in shock absorption performance compared to traditional three wheel vehicles, ensuring a stylish appearance and a comfortable driving experience for your daily transportation.

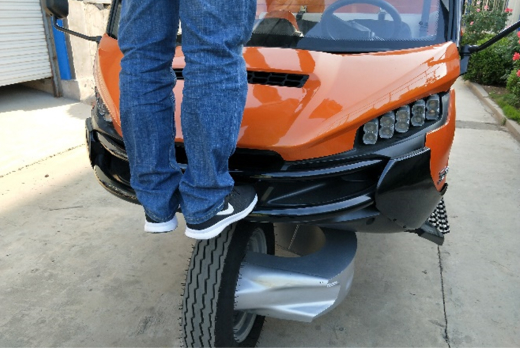

Multiple protections

Welded body frame, the first of its kind in the industry. Dual bumpers to effectively reduce impact. Factory-installed front suspension rocker arm shock absorption, improving reliability five times. All-LED galaxy lighting, improving brightness by 80% and irradiation distance by 1.5 times.

Satisfy
Different

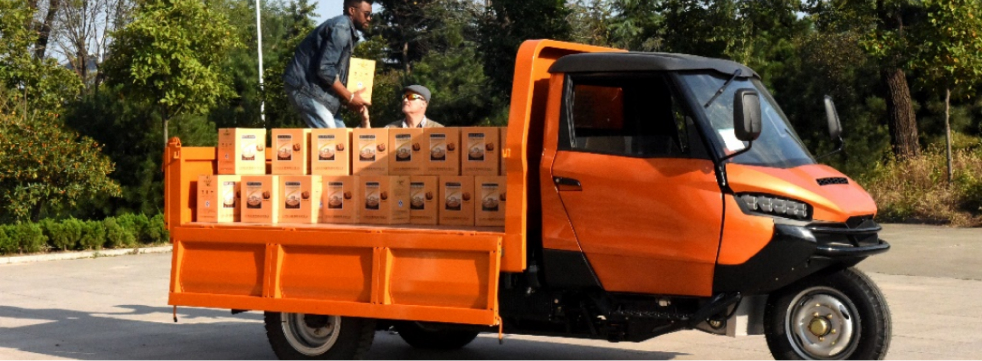

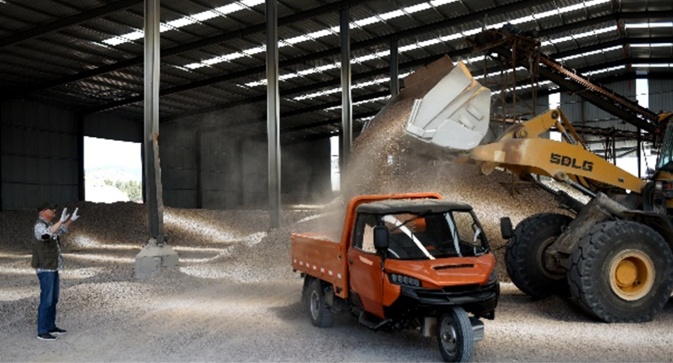

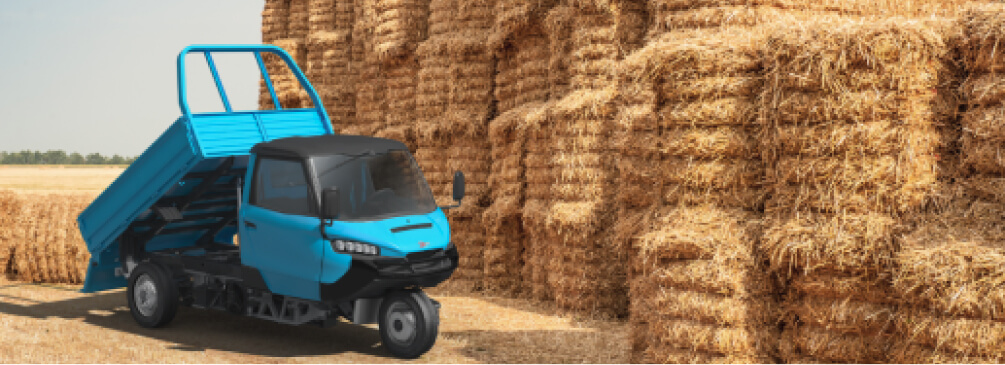

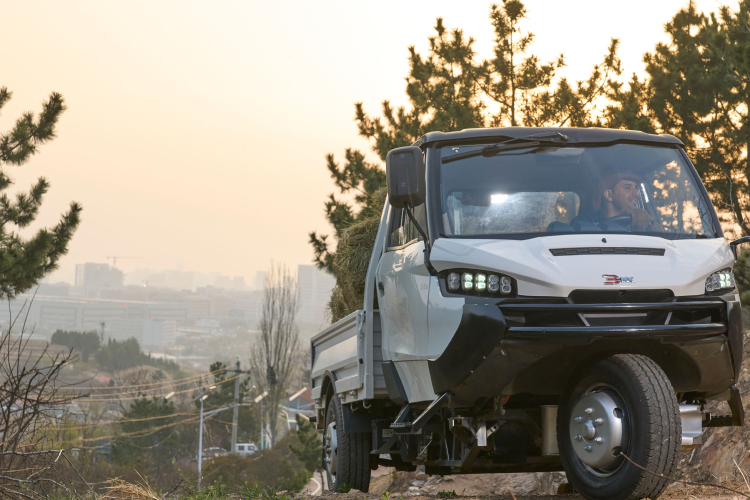

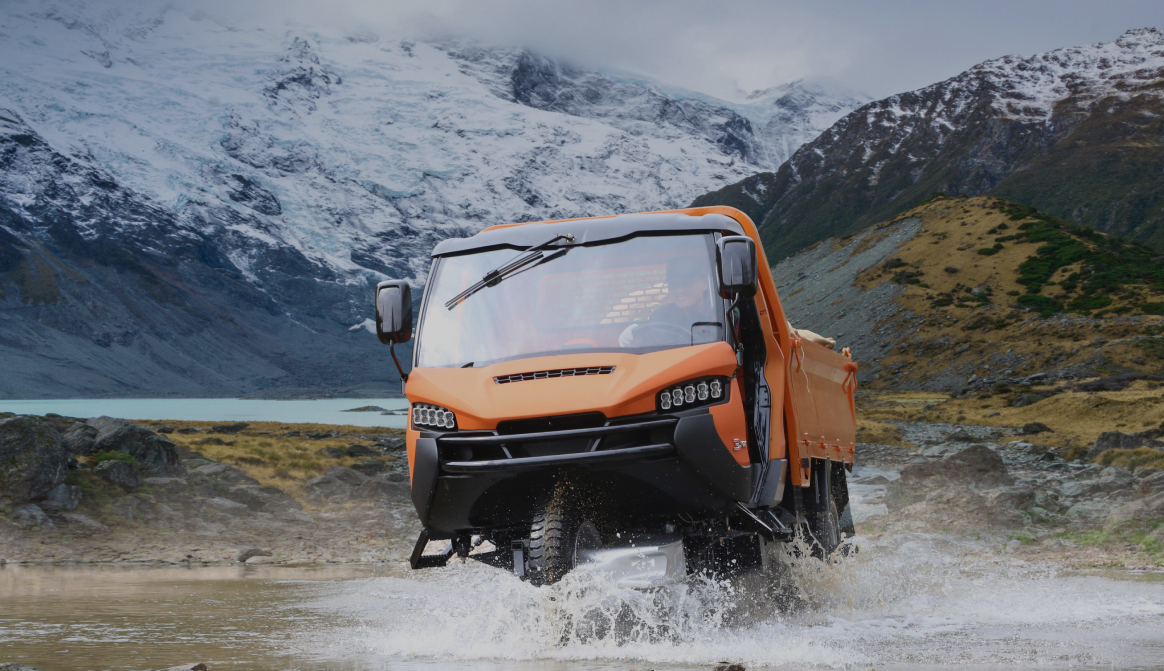

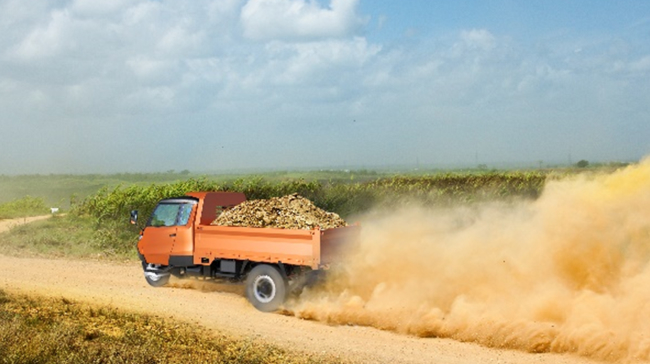

Use scenarios

Technical specification

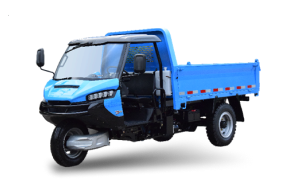

3MX single-cylinder semi-enclosed/simple shed
3MX single-cylinder fully enclosed
3MX multi-cylinder fully enclosed

Parameters
Body
Frame form
Engine model
Box dimensions
External contour dimensions
Gearbox
Front and rear tires
Steering type
Brake type
Clutch type
Shock absorber type
Dumping mode
Wheeltrack
Wheelbase
Other configurations

- 3MX single-cylinder semi-enclosed/simple shed
- 3MX single-cylinder semi-enclosed
- 170 high-strength steel external span/truss type external span
- 24/28/30/32/33/35
- 2350×1540×450
  2700×1600×500
- 4195×1540×1720
  4560×1600×1825
- 8 gears/10 gears
- Front 60016/65016, Rear 70016/75016
- Recirculating ball/electric power assistance
- Vacuum power brake/air-cut brake
- Mechanical clutch
- Independent front suspension arm
- Electric-controlled hydraulic lifting and lowering / Hand-controlled hydraulic lifting and lowering
- 1240/1340
- 2860/3030
- Optional colors: Maiang Orange, Shining Red, Star Blue
  Optional configurations: power output, hand-operated throttle, electromagnetic drip, reverse camera, footrests
- 3MX single-cylinder fully enclosed
- 3MX one row/one-and-half row
- 170 high-strength steel external span/truss type external span
- 24/28/32/33/35
- 2700×1600×500
  2800×1700×500
- 4560×1600×1995
  5160×1700×2025
- 10 gears
- Front 60016/65016, Rear 70016/75016
- Recirculating ball/electric power assistance
- Vacuum power brake/air-cut brake
- Mechanical clutch
- Independent front suspension arm
- Electric-controlled hydraulic lifting and lowering
- 1264/1340/1496
- 2860/3030/3380/3580
- Optional colors: Maiang Orange, Shining Red, Star Blue
  Optional configurations: Key with wireless remote control, electric doors and windows, electric fan, electromagnetic drip, reversing camera
- 3MX multi-cylinder fully enclosed
- 3MX one-and-half row
- 170 high-strength steel external span
- 480/485/490
- 2900×1600×450
  3050×1800×500
- 5040×1600×2085
  5185×1800×2085
- 130/1030/1060
- Front 60016/65016, Rear 60016 Dual/70016 Dual/75016
- Recirculating ball/electric power assistance
- Vacuum power brake/air-cut brake
- Mechanical clutch
- Independent front suspension arm
- Electric-controlled hydraulic lifting and lowering
- 1180/1236/1300
- 3430/3500/3570
- Optional colors: Maiang Orange, Shining Red, Star Blue
  Optional configurations: Key with wireless remote control, electric doors and windows, electric fan, electromagnetic drip, reversing camera
